Specifications Guides:

Click The Guide to Download

Dajica Cabinet Construction

Quality Cabinetry
A   Metabox (Epoxy Coated Steel Drawer Sides)
B   100% Melamine Interior 5/8″
C   Hinges
D   5/8″ Clip-on Melamine Toekick
E   1-1/8″ Support Rails (Excluding Drawer Banks)
F   1/8″ Backing on all Cabinets
G  10-9/16″ Deep Adjustable Cabinet Shelves 5/8″ with locking clips
H  Dowel and Glue Cabinet Construction
I   Base Cabinets on Adjustable Legs *Min: 3-5/8″ Max: 5-1/8″
J  Maple horizontal edge to match with interior of cab
K Top Drawer Front is 6-3/16” Height

Cabinet Construction
  • Impression Series

        • Maple Interior

        • Colour Matched Exterior

        • Soft Close Metabox Drawers

        • Soft Close Hinges



  • Select Series

    • White Interior

    • Colour Matched Exterior

    • Standard Non-Soft Close Metabox drawers

    • Standard Non-Soft Close Hinges

Drawer Options

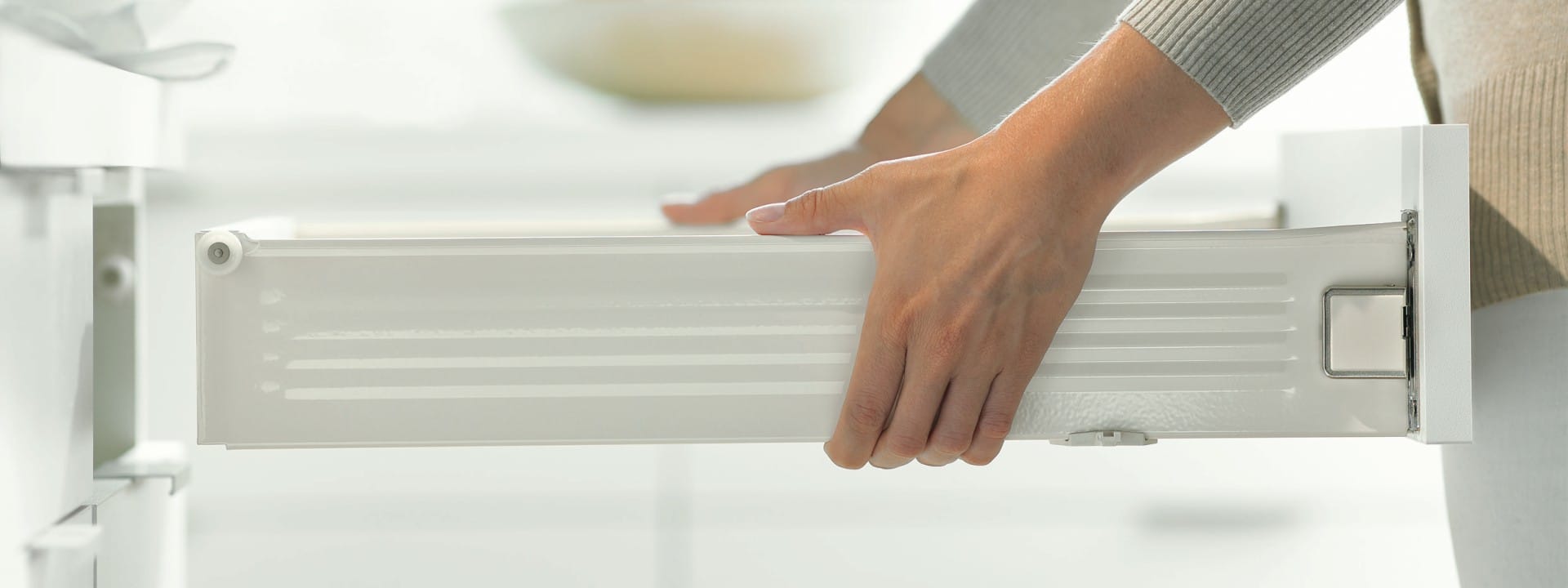

Standard METABOX

METABOX drawers and pull-outs have only few component parts. You can use the tried and tested box system for a variety of applications in kitchens, hallways, bathrooms and offices – and even for shop fit outs. Robust materials and careful workmanship produce high stability – up to a maximum dynamic carrying capacity of 25kg.

Product Overview

METABOX comes in several height adjustments:

  • Height N – 57 mm
  • Height M – 89 mm
  • Height K – 121 mm
  • Height H – 153 mm
  • Height B – 154 mm
  • Height D – 218 mm

METABOX can also be combined with tried and tested soft-close BLUMOTION so drawers and pull-outs close softly and effortlessly regardless of weight and how hard they are pushed shut. What’s more, METABOX is extremely practical and economical: you only need one BLUMOTION unit for cabinet widths of up to 900 mm.

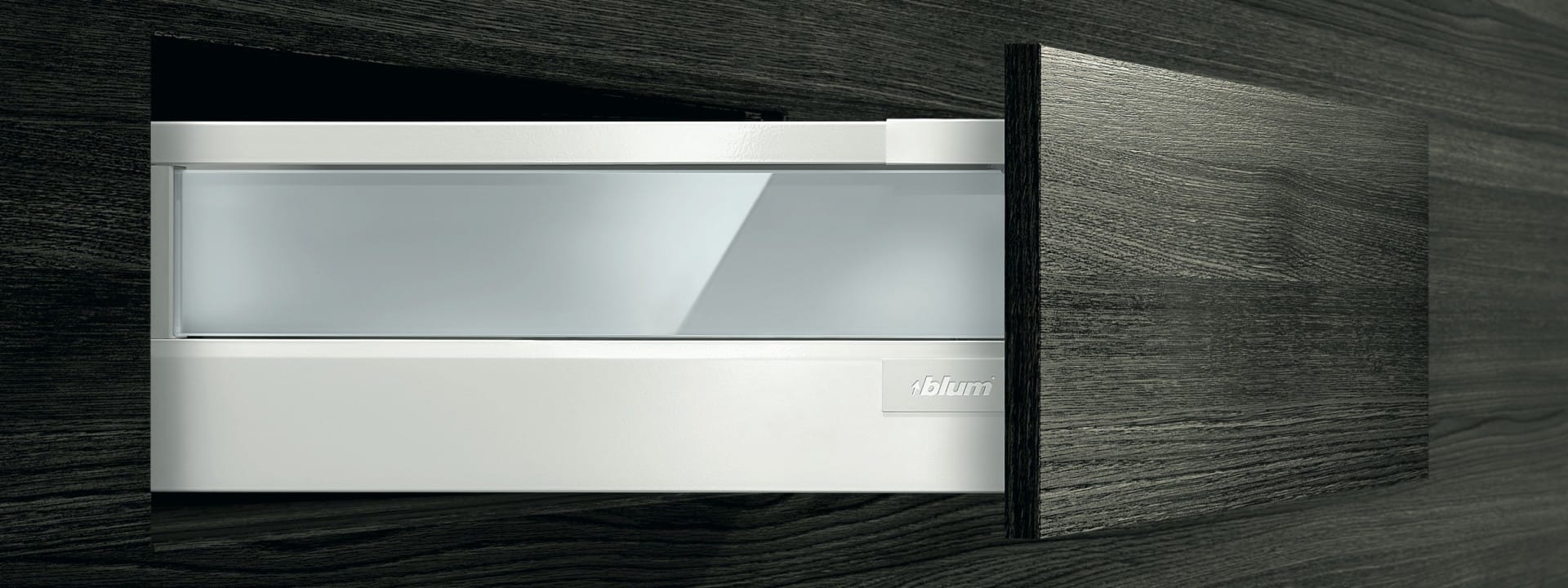

TANDEMBOX antaro, BLUMOTION

  • Integrated BLUMOTION for silent and effortless closing action
  • Smooth running action
  • Fast, tool-free assembly of front
  • Two-dimensional front adjustment
Product Overview – Drawer, height M (Space requirement 98.5 mm), load bearing class 30/65kg

Drawer suitable for Blum TANDEMBOX antaro.
Double walled drawer sides in:
a) Steel in silk white
b) Steel in terra black
c) Steel in white aluminium (RAL9006) With cover caps for drawer sides. Concealed, guided full extension with low-friction cylindrical nylon roller runners and integrated BLUMOTION.

Dynamic carrying capacity: 100,000 opening and closing cycles with selected nominal length and load bearing class. Can optionally be equipped with electric opening support system. Option of combining with side stabiliser. Fast, tool-free assembly of front. Two-dimensional front adjustment. Appropriate ORGA-LINE inner dividing system available as an option.

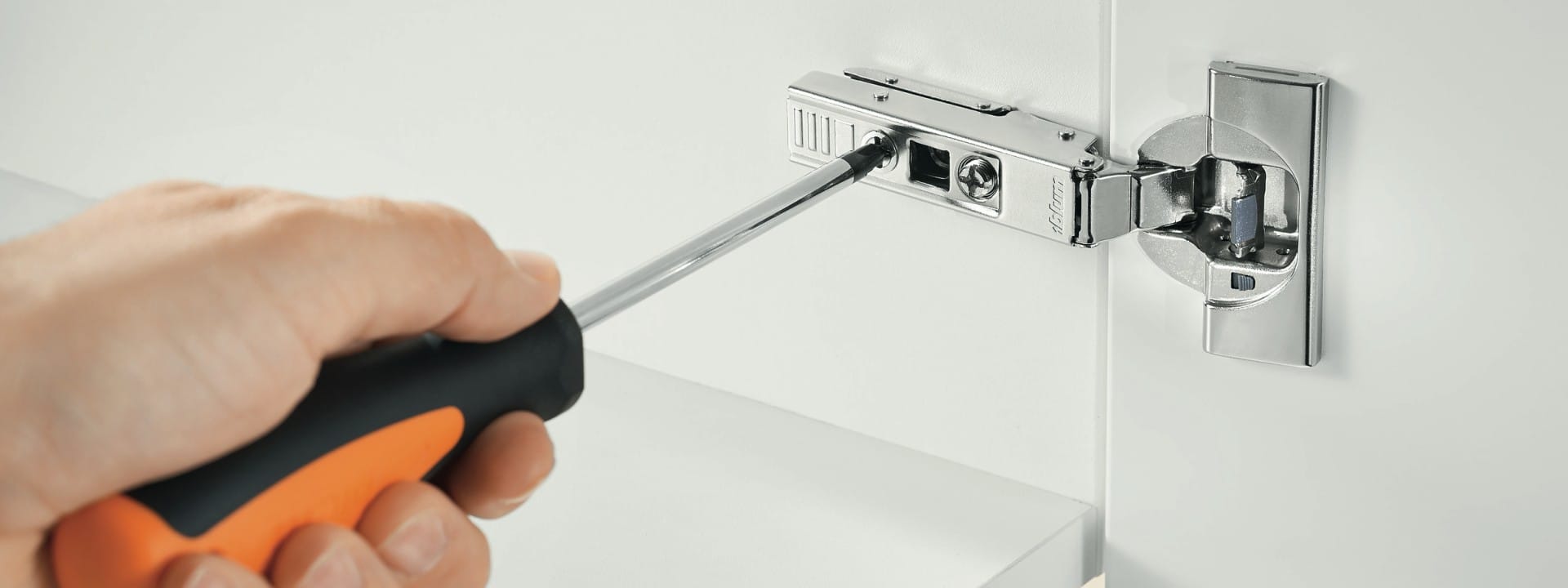

Clip top BLUMOTION hinge

  • Elegant design with small overall dimensions thanks to integrated dampening in the hinge boss
  • Integrated BLUMOTION for silent and effortless closing action
  • Deactivation option for BLUMOTION dampening for small, lightweight doors
  • Harmonious gap design thanks to convenient and infinitely variable 3-dimensional adjustment
  • Various applications possible thanks to different hinge arms and boss fixings
Product Overview

Blum CLIP top BLUMOTION hinge 110°. Hinge for standard applications. 110° opening angle. Made in Austria. Closing
dampening integrated in the hinge boss; this can be deactivated. Tool-free fast assembly and removal of the door from the cabinet using clip-on assembly method. Third location pin in hinge arm for stable hold of the hinge on the mounting plate.

Finishes available
a) nickel plated

Assembly on
a) straight mounting plate
b) cruciform mounting plate
Optionally with cover caps for hinge arm and boss. Optionally with 86° opening angle stop.
Infinitely variable 3-dimensional adjustment: Height max. ± 3 mm, Side ± 2 mm, Depth adjustment via spiral screw + 3/- 2 mm.
